CCF-2EPA

Applications:

· POU filtration system placed at the household’s sources    of drinking water.



· Designed for reduction of chemical contaminants.



· Chosen by the EPA  in lieu of bottled water in emergency situations and for use at the 1200 most contaminated superfund sites on the EPA’s National Priorities List.

· Up to 99% effective at removing EDG, TCE, PCE, THM and other dangerous chemicals from drinking water.



· Effectively removes chlorine, foul tastes and odors.



· Provides pure, safe, great tasting water.



· Other system configurations include:  Removal of heavy metals, lead and mercury, ultra-violet add-on to destroy bacteria, and removal of heavy sediment.

Performance:

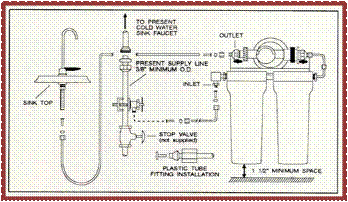

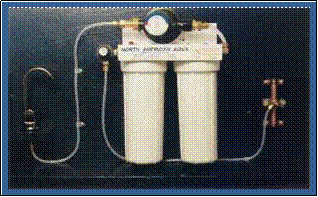

Point of Use Filtration

Specifications for POU System CCF-2EPA

Effective Life Indicator:



The filter cartridges are proven effective for up to 1,250 gallons of use, or about a full year for an average family.  The system features a built-in “Effective Life Indicator” to monitor usage and automatically shut off the water supply at 1,250 gallons use.  The user is thereby reminded t replace the filter cartridges.



Replacement Cartridges:



The system requires two carbon cartridges.  These cartridges have an integral sediment filter which removes dirt, rust and other suspended particles of .5 micron size and larger.



NORTH AMERICAN AQUA        ENVIRONMENTAL, LLC

ENVIRONMENTAL REMEDIATION SPECIALISTS

WATER & AIR FILTRATION SYSTEMS

Weight

8.5 Pounds

Dimensions

12” L  x   5 ¼ “ W  x  15 ¼” H

Flow Rates

*A flow restrictor allows

   a maximum delivery

   rate  of .90 gpm.

.90 gpm max @ 60 psig

.75 gmp max @ 45 psig

.60 gpm max @ 30 psig

Maximum Temperature

100 Degree Fahrenheit

(for cold water use only)

Tubing

Polyethylene

Housing Construction

Polypropylene Cap, Sump and Buna-N O-Ring

Shipping Weight

9.3 pounds

Operating Pressure

125 psig Maximum

Water Pressure

Regulator Included

Preset to deliver

60 psig Maximum

Recommended

Minimum Pressure

25 psig
